Board Dimension
Case Dimension

Dimension

Board Dimension

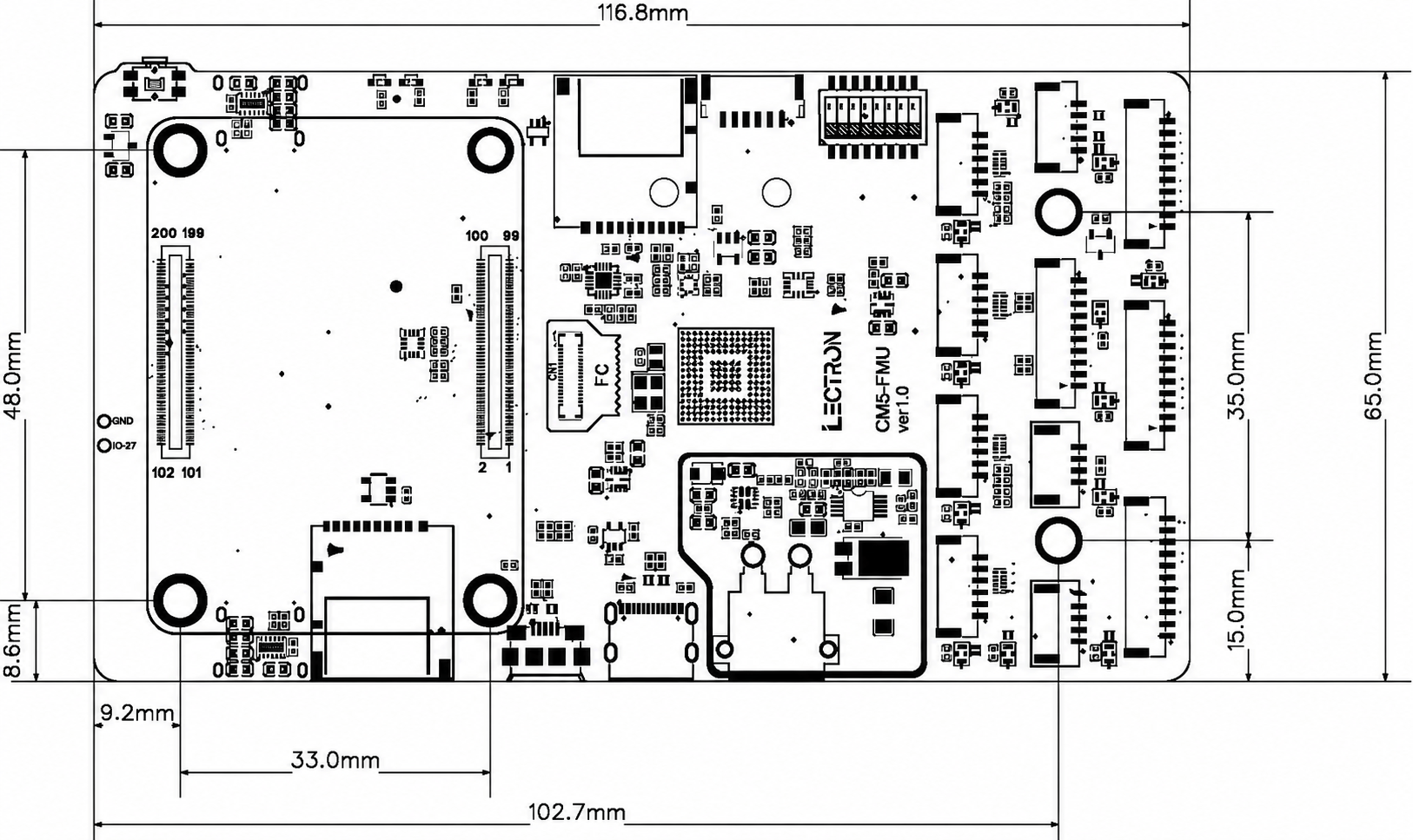

CM5 Autopilot Board Dimension

Case Dimension

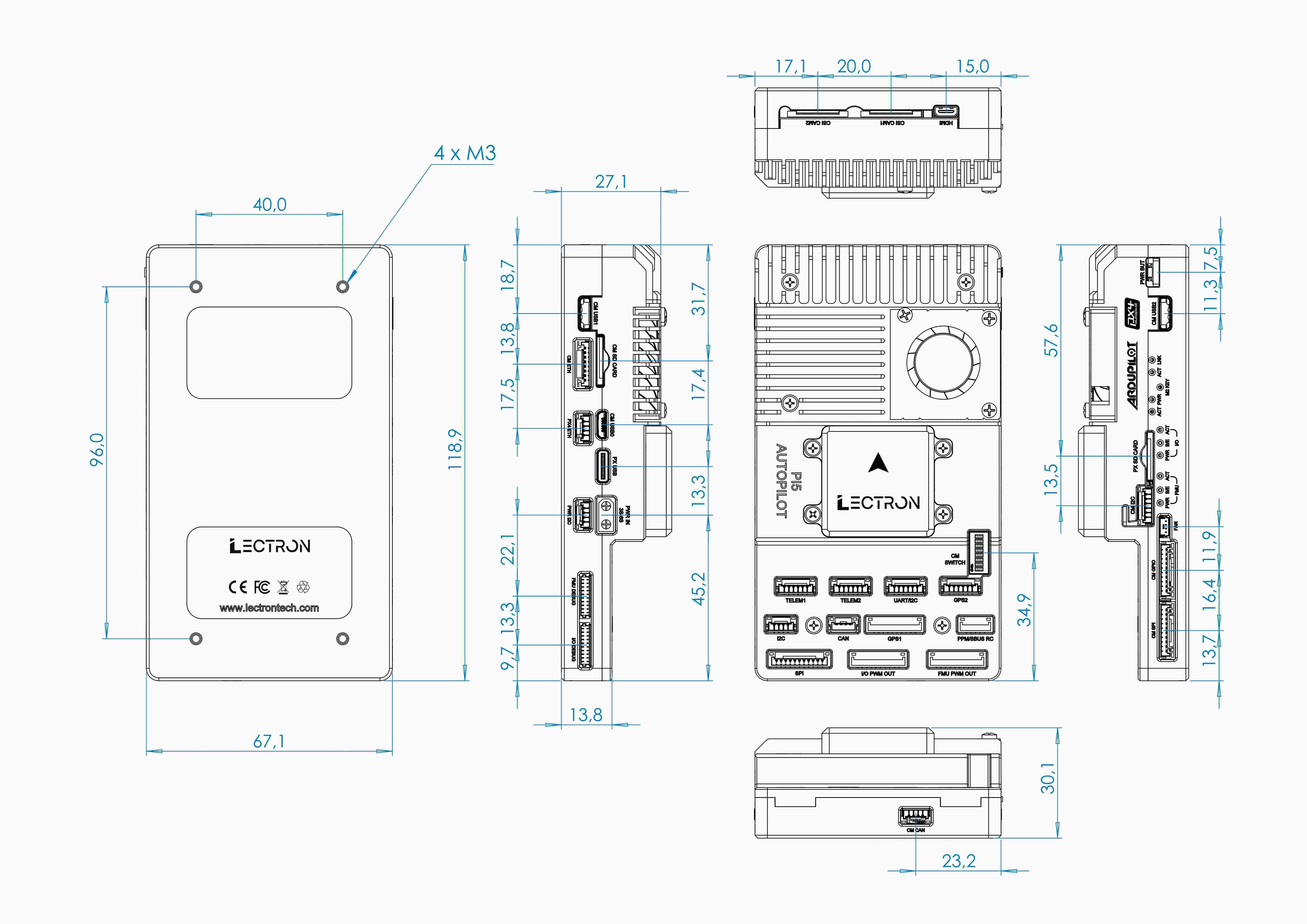

CM5 Autopilot Case Dimension
